• Weight

    Weight of the dinghy support: 4.1kg

    Weight set (1 pair): 8.2kg

  • Dimension

    Dimensions (folded),

    L x W x H: 490mm x 140mm x 61mm without bolts for bathing platform.

  • Hull angle

    Between173 degreesand107 degreeswith a pointed hull and up to95 degreeswith a flattened hull.

  • Load

    Maximum load: Total weight of the dinghy or jet ski maximum:580kg (see operating instructions)

  • Material

    Material: V4A, ASA, TPE

Fastening the system

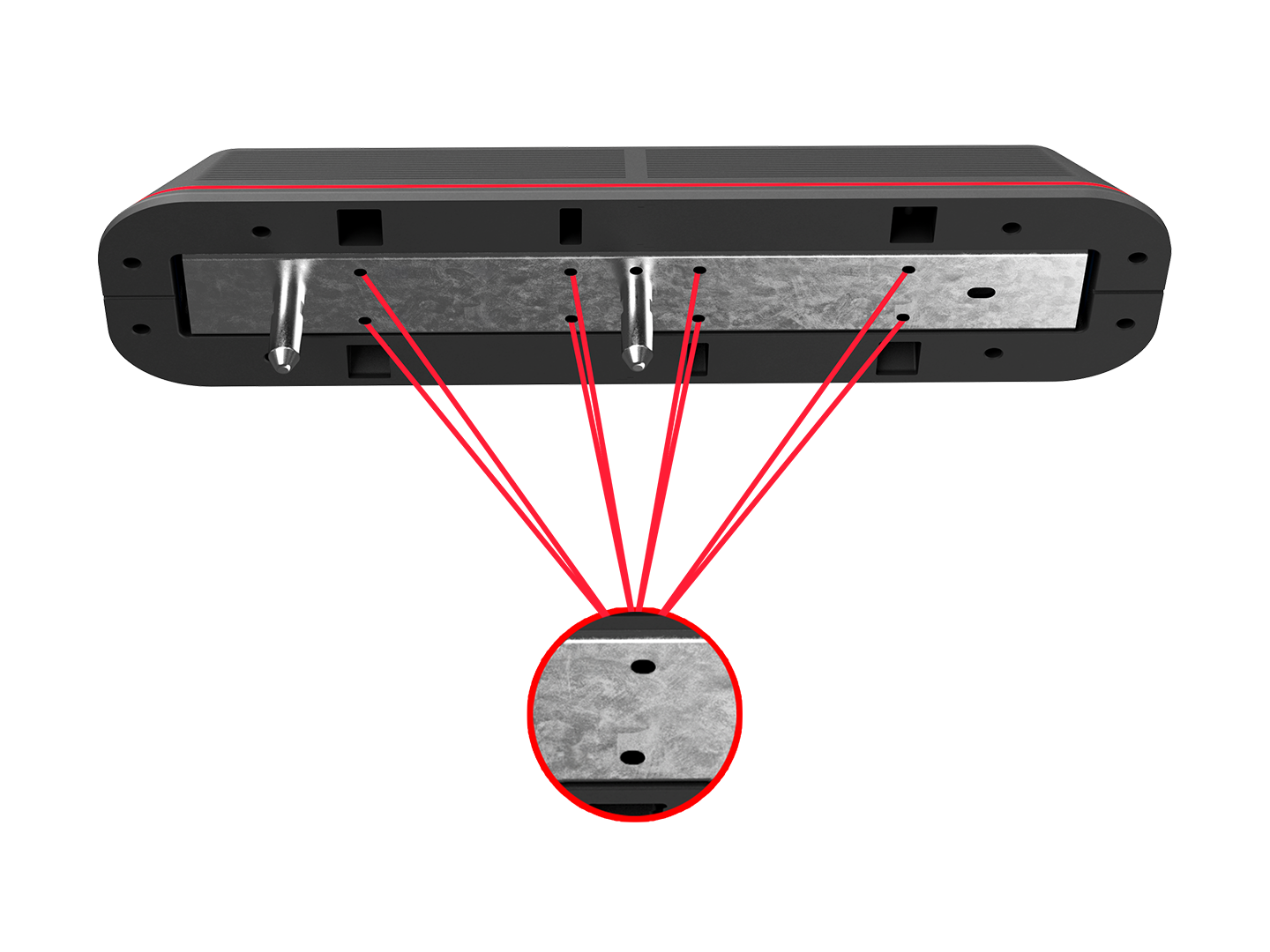

Mounting holes in the lower part for screwing the components onto the bathing platform.

At least 8 out of 10 fastening points must be screwed.

Suitable screws with at least 5mm diameter and sufficient length must be used!

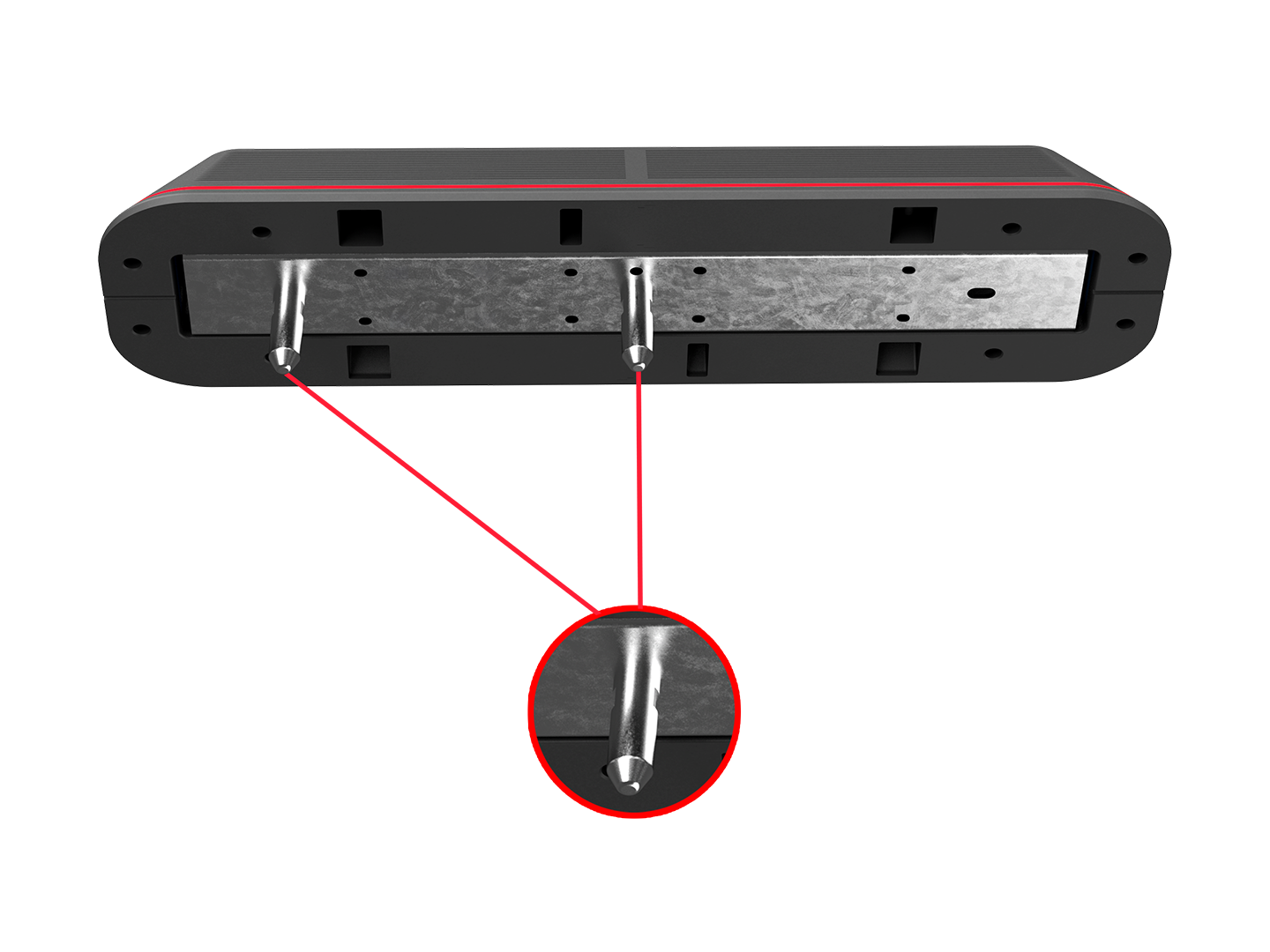

Alternative mounting option

bolt diameter: 14.5mm

Bolt length: 40mm

Bolt spacing: 160mm or 320mm
